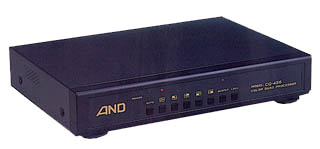

CQ-456 High Resolution Economy Color Quad
| FEATURES |
Simultaneously
monitoring of images from up to 4 on the screen.- Option available to watch a full or quadrant picture.
- Real time high resolution performance with exceeding 16 million colors.
- Provides an auto sequential switching function and the dwell time is adjustable (1-15 seconds)
- Auto Gain control (AGC) available for each camera input.
- Security lock.
| SPECIFICATIONS |

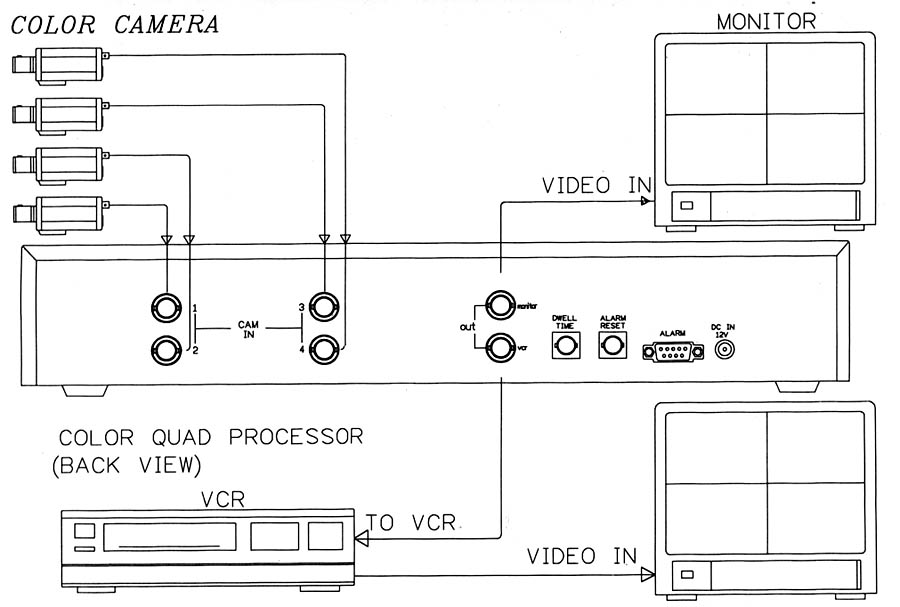

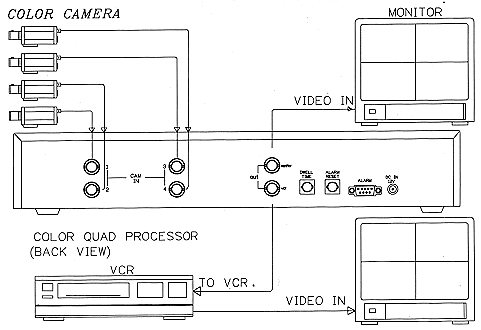

| Camera Inputs | BNC X 4, 2:1 interlace, composite video 1.0 Vp-p, 75 ohms. |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| VCR Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| Digital Memory | 1024 X 512 pixels. Y = 8 bit, C = 8 bit |
| Alarm Inputs | 9 pin D-SUB type connector X 1 |
| Alarm Output | |
| Recovery Input | |
| Display Rate | Real time refresh rate, 50/60 fields/second |
| Operation Temperature | 5oC to 40oC |
| Operation Humidity | 5% to 90% |
| Power Source | DC 12V, 1 Amp. |
| Power Consumption | Max. 11 Watts |
| Weight | 2.35 Kgs (5 lb 3 oz) Net |
| Dimensions | 343mm X 250mm X 66mm (13 1/2" W X 9 5/6" D X 2 3/5" H) |
