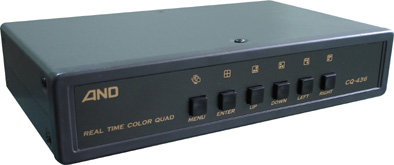

CQ-436 Real Time Color Quad Processor
| FEATURES |
-
Provides
OSD available for adjustments of Camera
Title、Time/Date、Pictu
re、Display Mode and Auto Dwell Time . - True real time performance that make the viewing pictures smooth and clear.
- It is designed by the digital circuitry, the viewing picture has no jitter problem during sequencing the cameras.
- Built-in time/date generator, plus 8 character camera titles..
| SPECIFICATIONS |

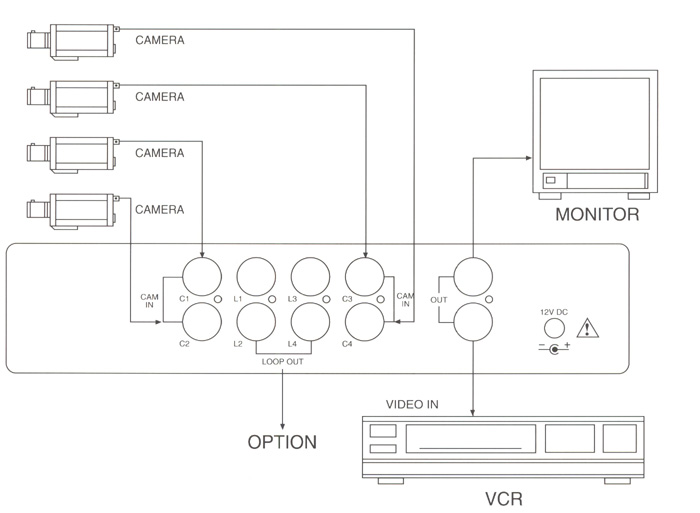

| Camera Inputs | BNC X 4, composite video 1.0 Vp-p, 75 ohms. |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| VCR Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| Resolution | NTSC:720X480 pixels, PAL:720x576pixels |
| Refresh Rate | 60/50 fields/second |
| Power Source | DC 12V, 500. mA |
| Power Consumption | Max. 5 Watts |
| Weight | 1 lb 11 oz (0.755kg.) net |
| Dimensions | 8 3/5"(W)x5 1/5"(D)x2"(H) 220mm x 140mm x 50mm |
| Loop Out | Option |
