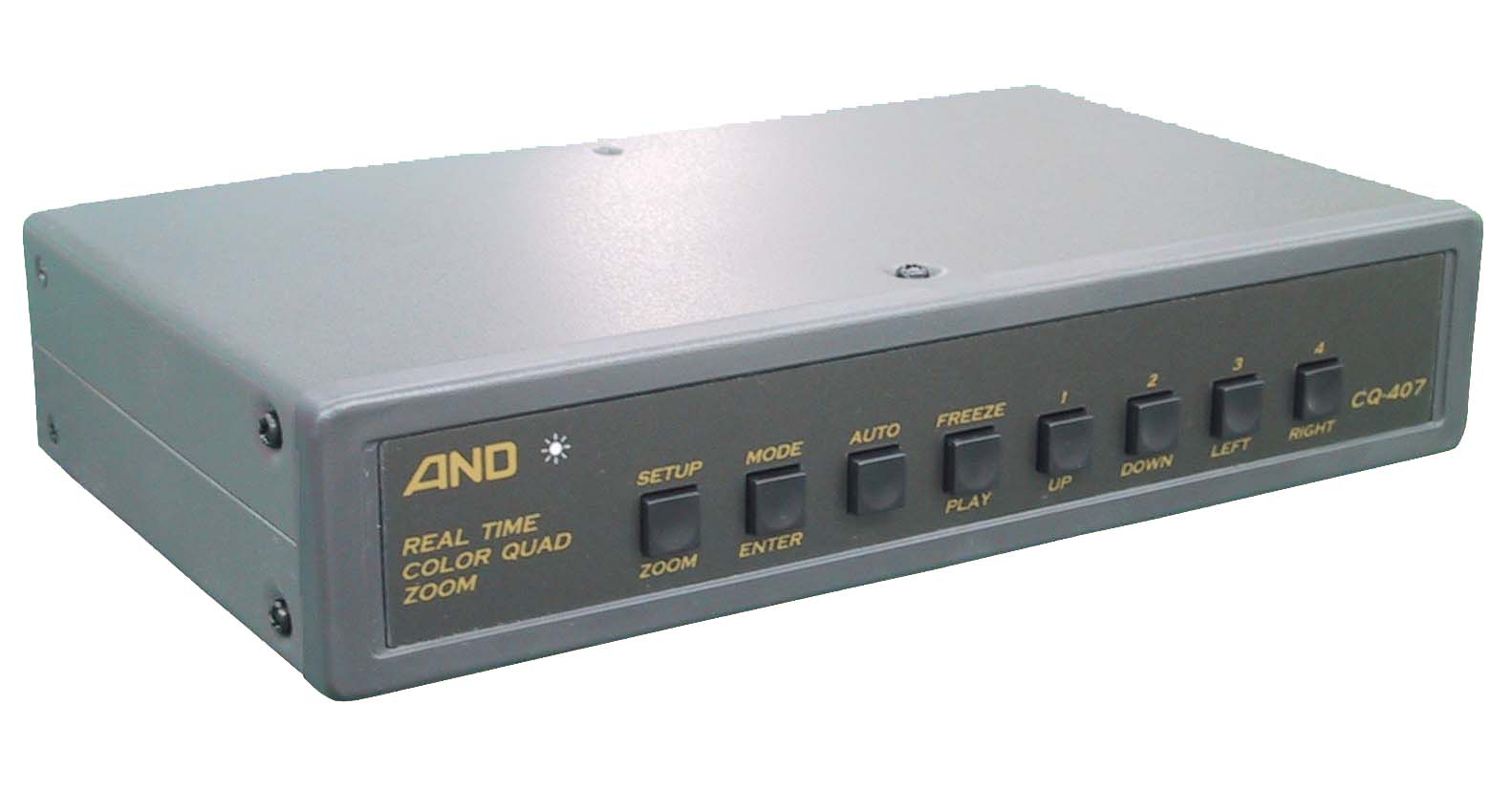

CQ-407 True Real Time With High Featured Color Quad Processor
| FEATURES |
-
Seven
main setup items listed on screen available for Camera title, Time/Date,
Contrast & brightness Adjustment, Display Modes, Auto Dwell Time Adjustment,
Loss/Alarm History Checkout. - Provides 2 x 2 zoom function, that allow enlarging the desired area either in the quadrant pictures or in the single full screen.
- Due to digital design, the viewing picture has no jitter problem during sequencing the cameras.
- Provides frozen screen function. The pictures can be frozen either while live viewing or tape playing
- It has different PIP modes that allow to be selected for monitoring.
- Provides automatic video loss and alarm detection, and automatic reset.
- Built-in time/date generator, plus 8 character camera titles.
- When an alarm is triggered, buzzer will sound and relay output.
- 80 alarm records in available to automatically record the sensor alarm and video loss channel with time/date stamp.
- Full screen display while playback.
- Provides motion detection function.
| SPECIFICATIONS |

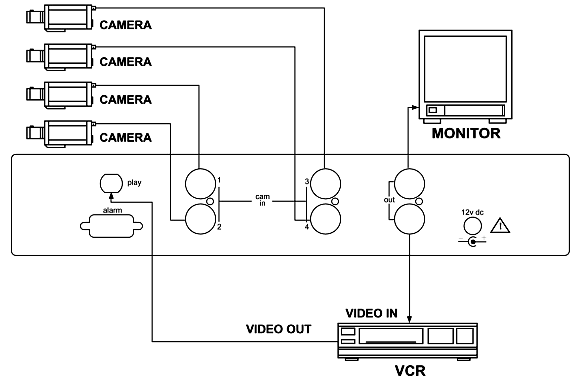

| Camera Inputs | BNC X 4, composite video 1.0 Vp-p, 75 ohms. | |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. | |
| VCR Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. | |
| Playback Input | BNC X 1, composite video 1.0 Vp-p, 75 ohms. | |
| Refresh Rate | 60/50 fields/second | |
| Alarm Input | 4, TTL Active Low | D-SUB 9 pin female connector |
| Recovery Input | 1, TTL Active Low | |
| Alarm Output | Normally Open (N.O.) x 1 (relay output) Normally Closed (N.C.) x 1 (relay output) N.O.,N.C.contacts with shared common DC24V, 1A | |
| Power Source | DC 12V, 500m A. | |
| Power Consumption | Max. 3 Watts | |
| Weight | 1 lb 11 oz (0.755kg.) net | |
| Dimensions | 8 3/5"(W)x5 1/5"(D)x2"(H) 220mm x 140mm x 50mm | |
