CQ-401 High Resolution w/Zoom Color Duo-Quad
| FEATURES |
A
new 2-page color quad processor with super high resolution display that
can accept 8 camera input for wider surveillance coverage.- Option available to watch 8 pictures by an automatic full screen sequential switching mode or alternating 2 page quad picture. The dwell time is programmable between 0 to 99 seconds.
- Provides quad to full screen picture ZOOM function during VCR playback.
- The automatic video loss and alarm detection, produces two different alarm sounds.
- Built-in time/date generator, plus 8 character camera titles.
- Provides on-screen set-up menus for ease of operation.
- 100 records available to automatically record the alarm and video loss channel with time/date.
- Automatic Gain control (AGC) available for each camera input.
- RS-232 remote control capability enhance product application.
- Security lock.
| SPECIFICATIONS |

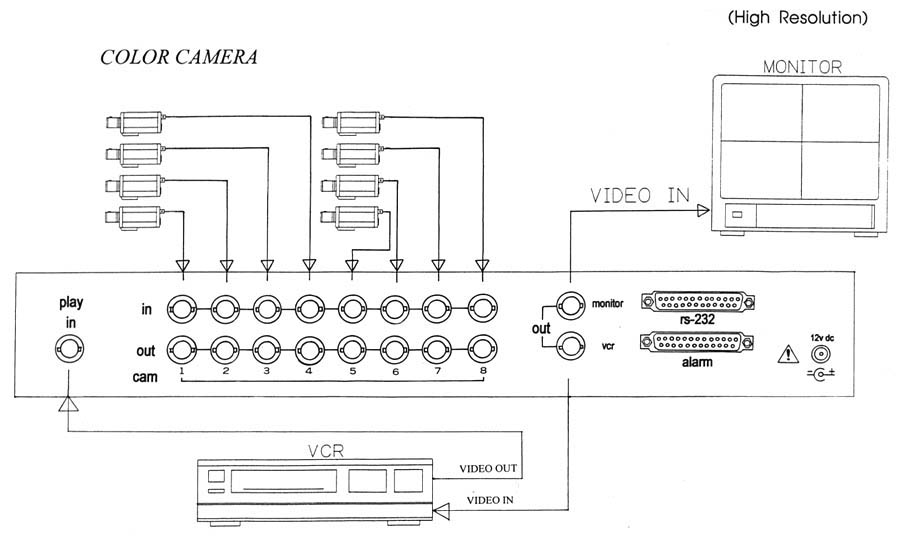

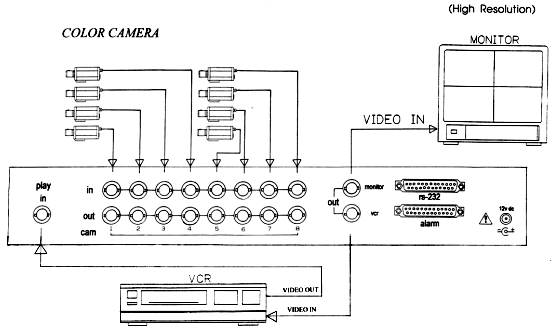

| Camera Inputs | BNC X 8, composite video 1.0 Vp-p, 75 ohms. |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| VCR Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| Looping Camera Outputs | BNC X 8, composite video 1.0 Vp-p, 75 ohms. |
| Playback Input | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| Digital Memory | 1024 X 512 pixels. Y=8bit, C=8bit. |
| Alarm Input | 8, (TTL Level) (D-SUB 25 pin female connector) |
| Alarm Output | 1,
Normally open or closed (relay output) contacts with shared common. (24V DC, 1A) (D-SUB 25 pin female connector) |
| Recovery Input | 1, (TTL active low) (D-SUB 25 pin female connector) |
| Display Rate | Real time refresh rate |
| RS-232 Interface | D-SUB 25 pin female connector |
| Power Source | DC 12V, 1.2 A. |
| Power Consumption | Max. 14 Watts |
| Weight | 2.4 Kgs. (5 lbs 5 oz) Net |
| Dimensions | 430mm X 248mm X 50mm (17" W X 9 3/4" D X 2" H) |
