BQ-536 True Real Time B/W Quad Processor
| FEATURES |
True
real time with high resolution performance. A smooth picture quality can
be viewed while either monitoring or tape playing.- With GENLOCK feature, the viewing picture has not a jitter problem while switching the cameras in sequence.
- Provides an automatic sequential switching function, and a fixed dwell time of 3 seconds available for the global intervals.
- Option available to watch 4 camera images by an automatic full screen sequential switching mode or a quadrant screen.
- One touch available to select the camera that you wish to view.
- Adjustable Gain control for each individual camera input.
| SPECIFICATIONS |

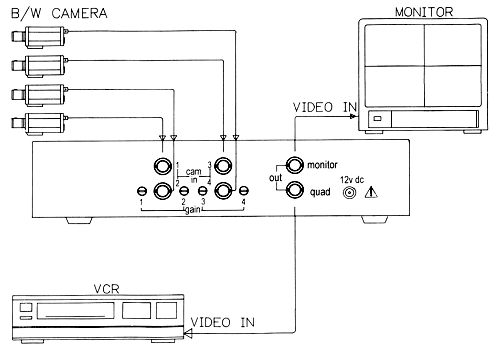

| Camera Inputs | BNC X 4, composite video 1.0 Vp-p, 75 ohms. | |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. | |
| Quad Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. | |
| Resolution | EIA : 720 x 480 pixels CCIR : 720 x 576 pixels |
256 gray scale. |
| Update Rate | True 60 / 50 fields / second. | |
| Operation Temperature | 5oC to 40oC | |
| Operation Humidity | 5% to 90% | |
| Power Source | DC 12V, 500 mA | |
| Power Consumption | Max. 2 Watts | |
| Weight | 0.7 kgs (1 lb 9 oz) Net | |
| Dimensions | 220mm (W) X 140mm (D) X 50mm (H) 8 3/5" (W) X 5 1/2" (D) X 2" (H) | |
