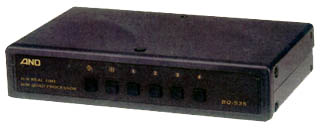

BQ-535 Real Time High Resolution Simple B/W Quad
| FEATURES |
-
Super
high resolution performance with 2048 x 512 pixels, an excellent picture
quality you can expect while monitoring or tape playing. -
Provides an automatic sequential switching function, and a fixed dwell time of 3 seconds available for the global intervals.
-
Automatically detects the input video signal to be suitable for use of CCIR or EIA standard.
-
Option available to watch 4 camera images by an automatic full screen sequential switching mode or a quadrant screen.
-
One touch available to select the camera that you wish to view.
-
Adjustable Gain control for each individual camera input.
| SPECIFICATIONS |
| Camera Inputs | BNC X 4, composite video 1.0 Vp-p, 75 ohms. |
| Monitor Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| VCR Output | BNC X 1, composite video 1.0 Vp-p, 75 ohms. |
| Digital Memory | 2048 X 512 pixels (quad screen), 256 gray scale. |
| Display Rate | Real time refresh rate |
| Ambient Temperature | 5oC to 40oC |
| Operation Humidity | 5% to 90% |
| Power Source | DC 12V, 500 mA |
| Power Consumption | Max. 6 Watts |
| Weight | 0.73 kgs (1.61 lbs) Net |
| Dimensions | 220mm X 140mm X 50mm (8 3/5" W X 5 1/2" D X 2" H) |
