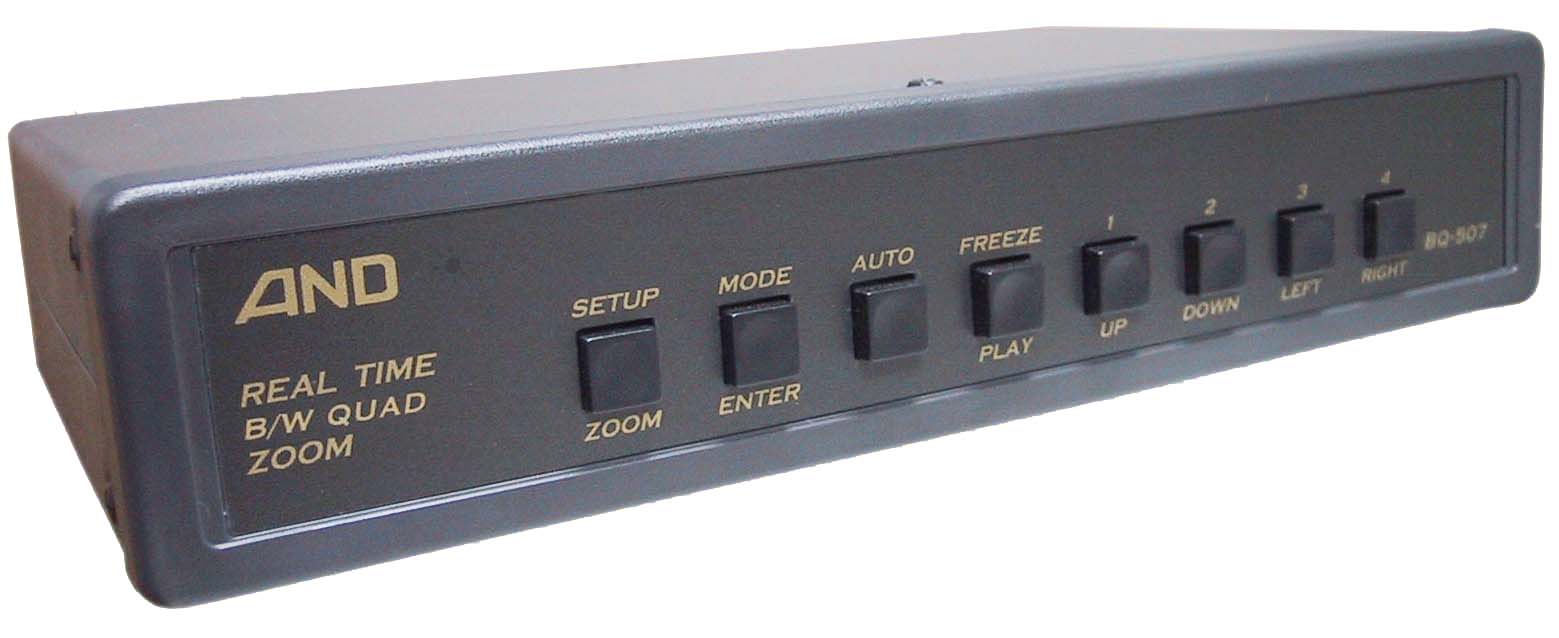

BQ-507 True Real Time w/High Featured B/W Quad

FEATURES

Seven main setup items listed on screen available for Camera Title, Time/Date, Contrast Adjustment, Brightness Adjustment, Video Standard (EIA / CCIR), Dwell Time Adjustment, Alarm Records Checkout.
Option available to zoom the desired area either in the quadrant pictures or in the single full screen.
The viewing picture without jitter situation while two cameras switching.
Provides frozen screen function. The pictures can be frozen either while live viewing or tape playing.
3 different PIP modes can be selected for surveillance.
Provides automatic video loss and alarm detection, and automatic reset.
Built-in time/date generator, plus 8 character camera output.
An alarm comes in triggering a warning sound and relay output.
90 alarm records available to automatically record the sensor alarm and video loss channel with time/date stamp.
When playback, any location on the screen allows to be enlarged.

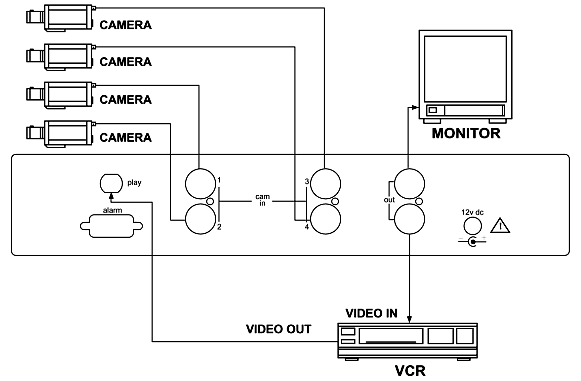

SPECIFICATIONS

Camera Inputs

BNC X 4, composite video 1.0 Vp-p, 75 ohms.

Monitor Output

BNC X 1, composite video 1.0 Vp-p, 75 ohms.

VCR Output

BNC X 1, composite video 1.0 Vp-p, 75 ohms.

Playback Input

BNC X 1, composite video 1.0 Vp-p, 75 ohms.

Refresh Rate

60/50 fields/second

Alarm Inputs

4, TTL Active Low

Recovery Input

1, TTL Active Low

Alarm Output

Normally Open (N.O.) x 1 (relay output)
Normally Closed (N.C.) x 1 (relay output)
(No, NC contacts with shared common. 24V DC, 1A

D-SUB 9 pin female connector

Power Source

12V DC, 500mA

Power Consumption

Max. 3 Watts.

Weight

0.725 kg. (1 lb 10 oz) Net.

Dimensions

220mm X 140mm X 50mm (8 ³/₅" W X 5 ¹/₅" D X 2" H)
