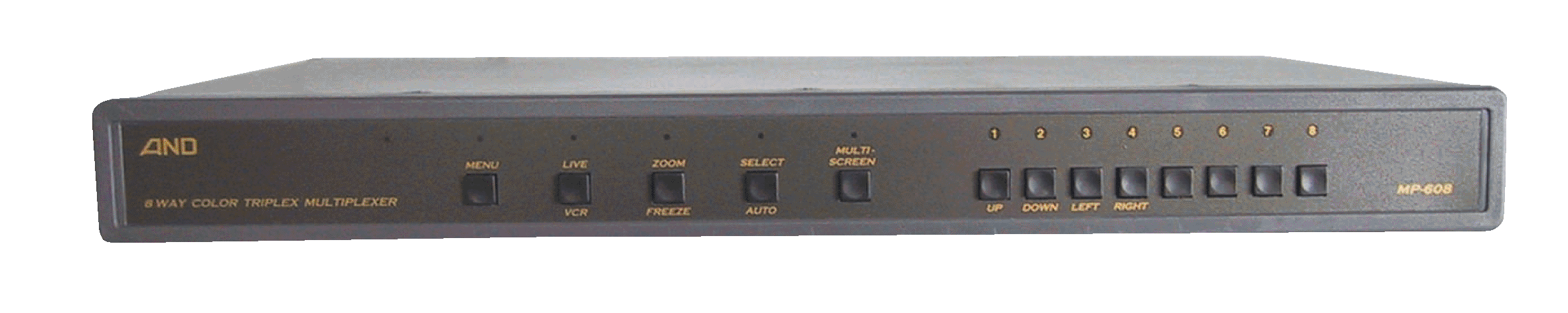

MP-608 8 Way Color Triplex Multiplexer
| FEATURES |
-
True
real time with high resolution performance. A brand-new 8-way color triplex
multiplexer will bring you more effective and facility either in live
monitoring or in video tape playing. -
Available for full frame pictures recording from up to 8 image sources via a single VCR while simultaneously monitoring them on a monitor.
-

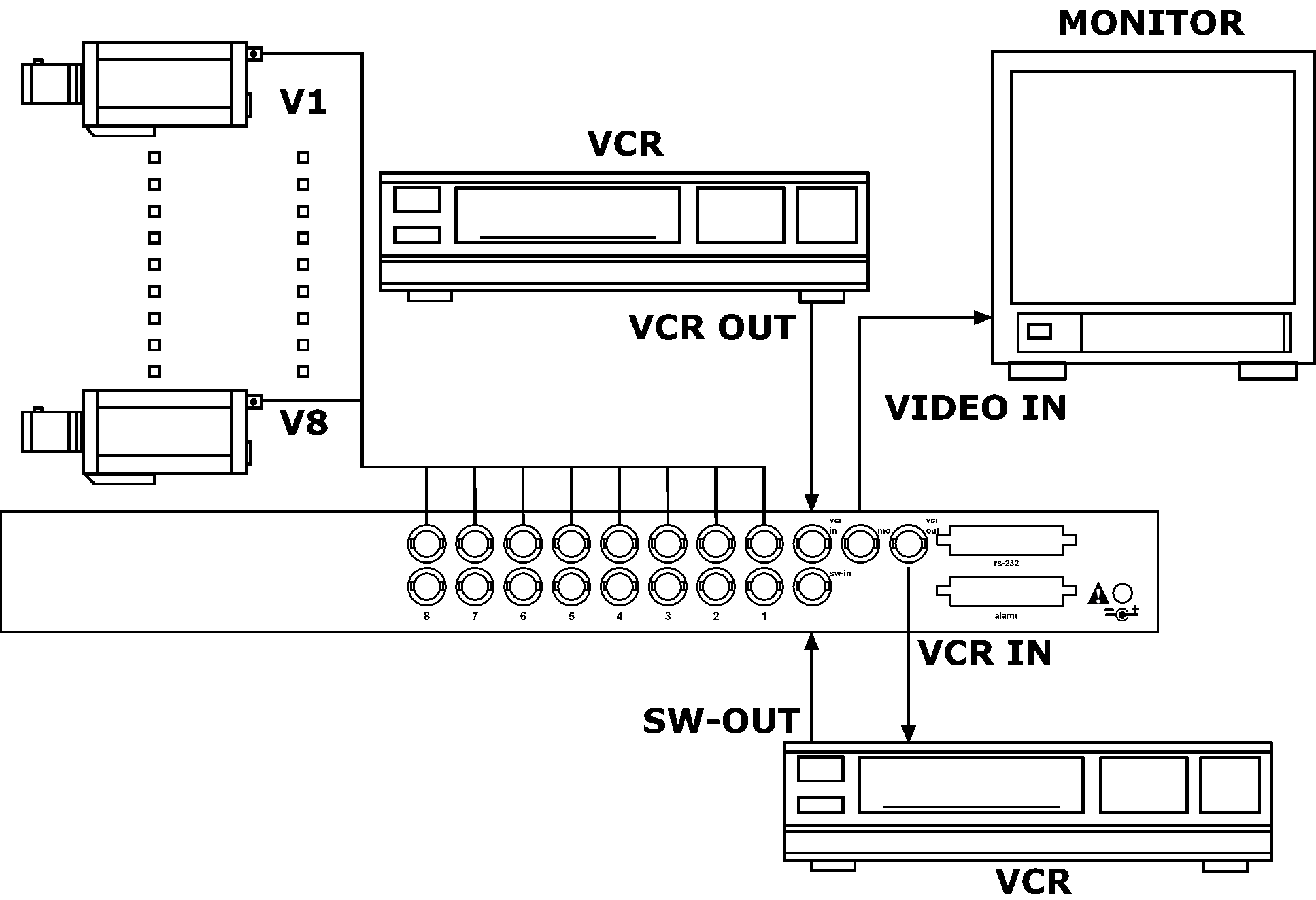

Triplex operation allows recording and playing up to 8 cameras simultaneously via 2 VCRs.
-
Perfectly synchronous recording that can be set in the menu or via the Switch Input jack to trigger. No specific VCR is required when recording.
-
Variety of display modes that allows to be chosen for live monitoring or video tape playing.
-
Available to zoom or freeze the pictures whatever it is in live monitoring or playback.
-
High impedance or 75 ohms is able to set in menu for the looping camera outputs.
-
Adjustable impedance, brightness, contrast, color and tint for each camera inputs.
-
Built-in time/date generator, plus 8 characters camera title function.
-
Provides on-screen setup menus for ease of operation.
-
Control by computer via RS-232 port greatly enhances product application.
-
100 alarm records available to automatically record the sensor alarm and video loss channel with time/date stamp.
-
Provides automatic video loss, sensor and motion detection.
| SPECIFICATIONS |
| Camera Inputs | BNC 8, composite video 1.0 Vp-p, 75 ohms. | |
| Looping Camera Output | BNC 8, composite video 1.0 Vp-p, 75 ohms. | |
| Monitor Output | BNC 1, composite video 1.0 Vp-p, 75 ohms. | |
| VCR Output | BNC 1, composite video 1.0 Vp-p, 75 ohms. | |
| Playback Input | BNC 1, composite video 1.0 Vp-p, 75 ohms. | |
| Switch Input | BNC 1, (TTL Level) | |
| Refresh Rate | 60/50 field/second | |
| Alarm Inputs | 8, (TTL Level) (D-SUB 25 pin female connector) | |
| Alarm Output | Normally open (N.O.) x 1(relay output) | (D-SUB 25 pin female connector) |
| Normally closed (N.C.) x 1(relay outpu) | ||
| (NO, NC contacts with shared common. 24V DC,1A) | ||
| Recovery Input | 1, (TTL active low) (D-SUB 25 pin female connector) | |
| RS-232 Interface | D-SUB 25 pin female connector | |
| Power Source | DC 12V, 1.2Amp. | |
| Power Consumption | Max. 11 Watts | |
| Weight | 2.1 kgs (4 lbs. 10 oz) Net | |
| Dimensions | 430mm X 248mm X 50mm (17" W X 9 3/4" D X 2" H) | |
