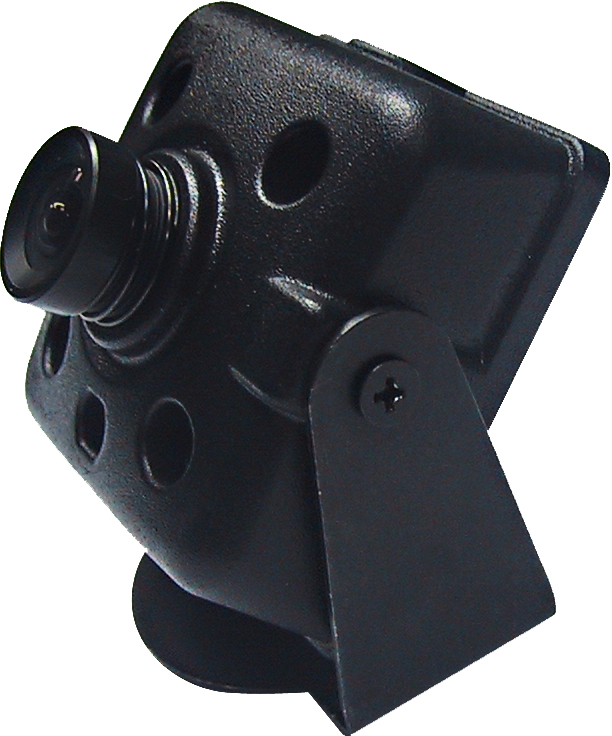

MINIATURE CAMERA
ACD-322M
| FEATURES |
-
1/3"
SHARP sensor ( day & night ) - Digital signal processing
- Auto electronic shutter
- Auto white balance
- Auto back light compensation
- High resolution
| SPECIFICATIONS |
>>ACD-322M
[back
to top]
| Full autoMODEL No. | ACD-322M |
| SENSOR | 1/3" SHARP CCD |
| NUMBER OF PIXELS | NTSC: 512(H) x 492(V) / PAL: 512(H) x 582(V) |
| HORIZONTAL RESOLUTION | Hi-resolution, more than 480 TV line |
| SCANNING SYSTEM | 2:1 Interlace |
| SENSITIVITY | 0.1Lux / F 1.2 |
| SYNCHRONIZATION | Internal |
| S/N RATIO | More than 48dB |
| GAMMA CORRECTION | 0.45 |
| ELECTRONIC SHUTTER | Auto and up to 1/100,000 |
| Video Output | 1 Vp-p, 75 ohm load |
| LENS | 3.6mm standard,(4mm, 6mm, 8mm and 12mm option) |
| POWER SUPPLY | DC 12V (-/+10%) |
| POWER CONSUMPTION | 108mA |
| AUTO WHITE BALANCE | MCT-AWB (MULTI COLOR TEMPERATURE AWB) |
| AUTO GAIN CONTROL | Full auto |
| BACK LIGHT COMPENSATION | Full auto |
| DIMENSION L*W mm | 44.2mm (W) X 32mm (D) X 50mm (H) |
| NET WEIGHT | 79g |
| STORAGE TEMPERATURE | -30 to +60 degree C |
| OPERATING TEMPERATURE | -10 to +45 degree C |
